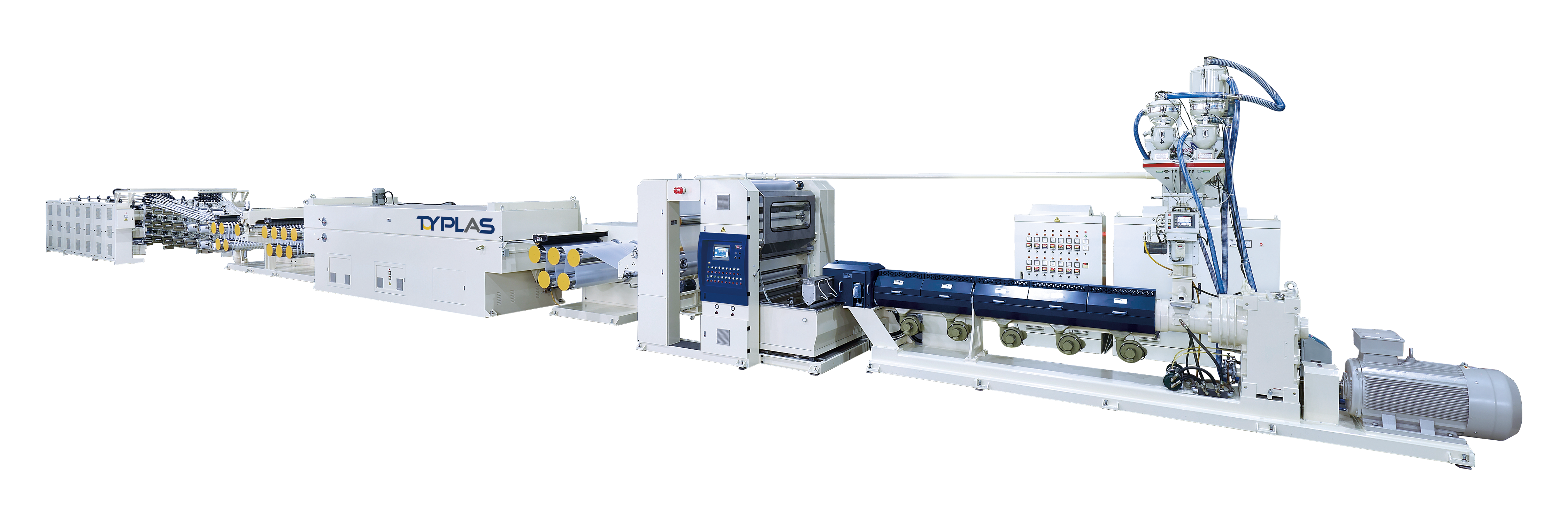

PP / HDPE Fibrillating Tape Line Making Machine
TLFB Series
TLFB series is an economical design of extrusion tape line, and low power consumption produces high performance as the main feature
Features & Advantages
☆ 2. Max. capacity: 500 kg/hr
☆ 3. Special screw design to produce high quality and stable discharge.
☆ 4. Improve the physical property of fibrillating tape to the highest tensile strength and tension
☆ 5. PLC programing and human machine interface with interlocking operation.
☆ 6. Stretching oven with airflow and temperature stability design.
☆ 7. Tape winder can set the diameter value of tape for winder change warning by LED light.
☆ 8. Machine customization.
Features & Advantages
TLFB series is mainly used in PP fibrillating tape line production, it used for twisting by twisting winder into Carpet Backing, Artificial Lawn or Grass, Ropes, Sewing Yarn, Packaging Cords.
☆ 1. Max. speed: 250 m/mins☆ 2. Max. capacity: 500 kg/hr
☆ 3. Special screw design to produce high quality and stable discharge.
☆ 4. Improve the physical property of fibrillating tape to the highest tensile strength and tension
☆ 5. PLC programing and human machine interface with interlocking operation.
☆ 6. Stretching oven with airflow and temperature stability design.
☆ 7. Tape winder can set the diameter value of tape for winder change warning by LED light.
☆ 8. Machine customization.
Feature

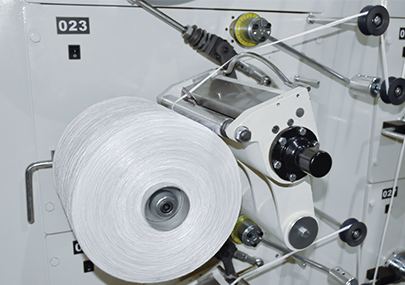

Inverter type and automatic tension control winder, the light-weight design of the tape guide slide achieves power savin

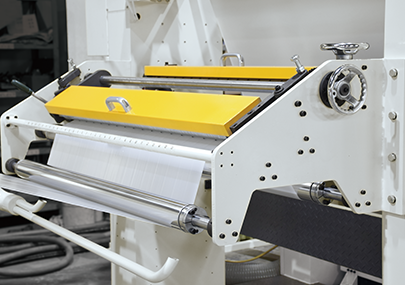

Fibrillating device with pneumatic lifting(air pressure)
Front and rear two-component strip edgy device can be exchange for increased productivity

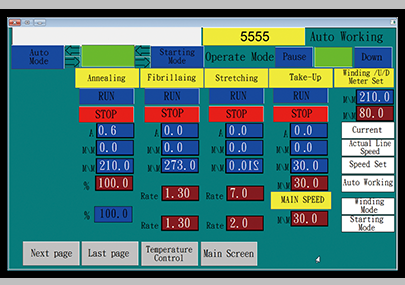

PLC program control & HMI interface, easy to operate and data memorize

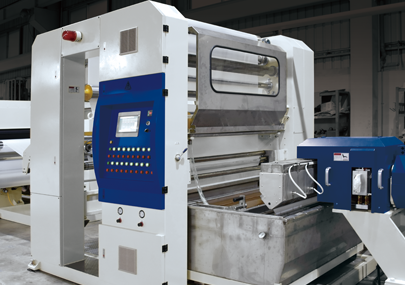

Quench take-up unit, with extrusion device, film cooling forming, and water removal system to keep the film even

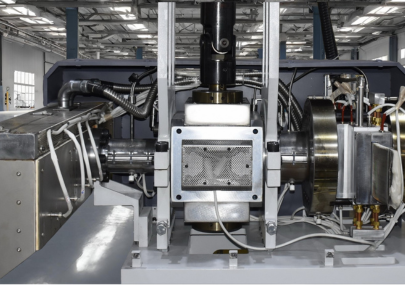

Double layer auto-screen changer, metering gear pump and T-die thermal insulation design.

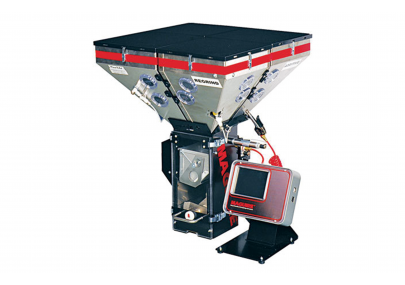

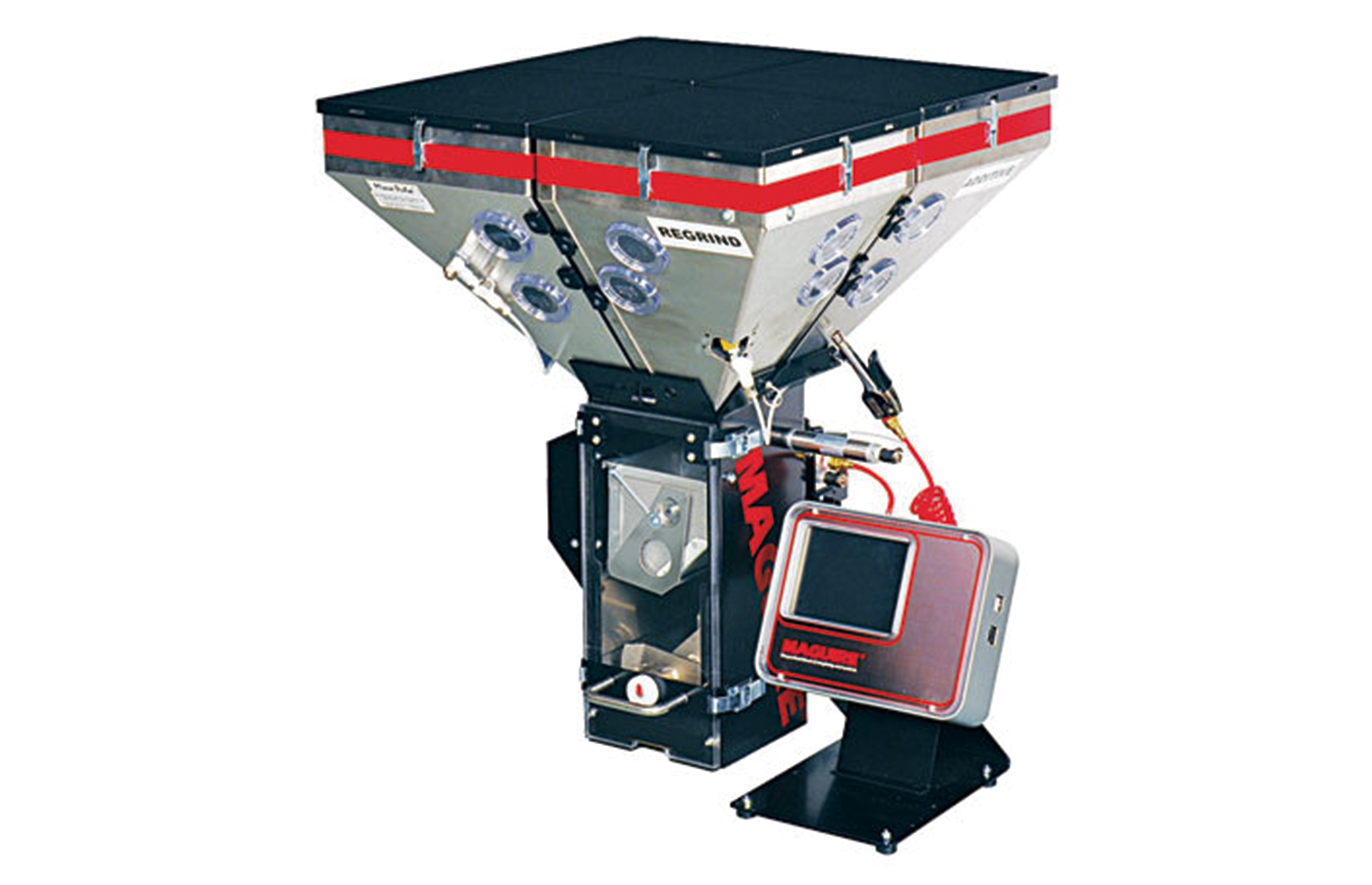

MAGUIRE blender(optional), and its function is to automatically cut and mix according to the proportion of raw materials
Specification
| ITEM/MODEL | TY-TLFB100-1000-30HF-ST1 | TY-TLFB115-1300-42HF-ST1 | TY-TLFB125-1500-54HF-ST1 |
| Max. Capacity | 300 kg / hr | 400 kg / hr | 500 kg / hr |
| Max. Line Speed | 250 m / min | 250 m / min | 250 m / min |
| Denier | 4500 - 22000 | 4500 - 22000 | 4500 - 22000 |
| Screw Diameter / Multiple | 100 mm / 34D | 115 mm / 34D | 125 mm / 34D |
| T-die Width | 1000 mm | 1300 mm | 1530 mm |
| Effective Width | 900 mm | 1190 mm | 1400 mm |
| Auto Tension Take-up Winder | 30 pcs | 42 pcs | 54 pcs |
| L x W x H | 39000mm × 4700mm × 4050mm | 41000mm × 4900mm × 4150mm | 43000mm × 5100mm × 4250mm |
